Sange 50cc 2-Stroke Bicycle Engine Kit, Air-Cooled, Black – Motorized Bike Conversion for 26″ & 28″ V-Frame
$38.57
Description
50cc 2-Stroke Bicycle Engine Kit
Transform your bike with this 50cc 2-stroke engine kit, offering fuel efficiency of 1.5L/100km and speeds up to 30km/h. Ideal for 26″ and 28″ V-frame bikes like mountain, road, cruiser, and chopper styles.
Features
- Includes all necessary hardware and a detailed manual for easy installation.
- Heat-treated motor and powder-coated gas tank for durability.
- Safe capacitor discharge ignition with electronic igniter.
Specifications
- Fuel Type: No.90
- Ignition Mode: CDI
- Driving Ratio: 18:01
- Chain Model: 415
- Compression Ratio: 6:01
- Chain Length: 110 links
- Bore & Stroke: 40mm & 38mm
- Max Power: 1.6Kw/6000r/min
- Speed Limit: 30km/h
- Rated Power: 1.15Kw/5000r/min
- Sparking Plug: Z4C 14MM
- Cooling: Natural air cooling
- Oil Consumption: 1.5L/100km
- Clutch Type: Friction Plate / Dry
- Engine Type: Single cylinder, air-cooling, 2-stroke
- Lubrication: 2-stroke petrol engine oil (10W/40 or 10W/30)
- Fuel/Oil Mixing Ratio: 16:1 for new, 20:1 after 500km

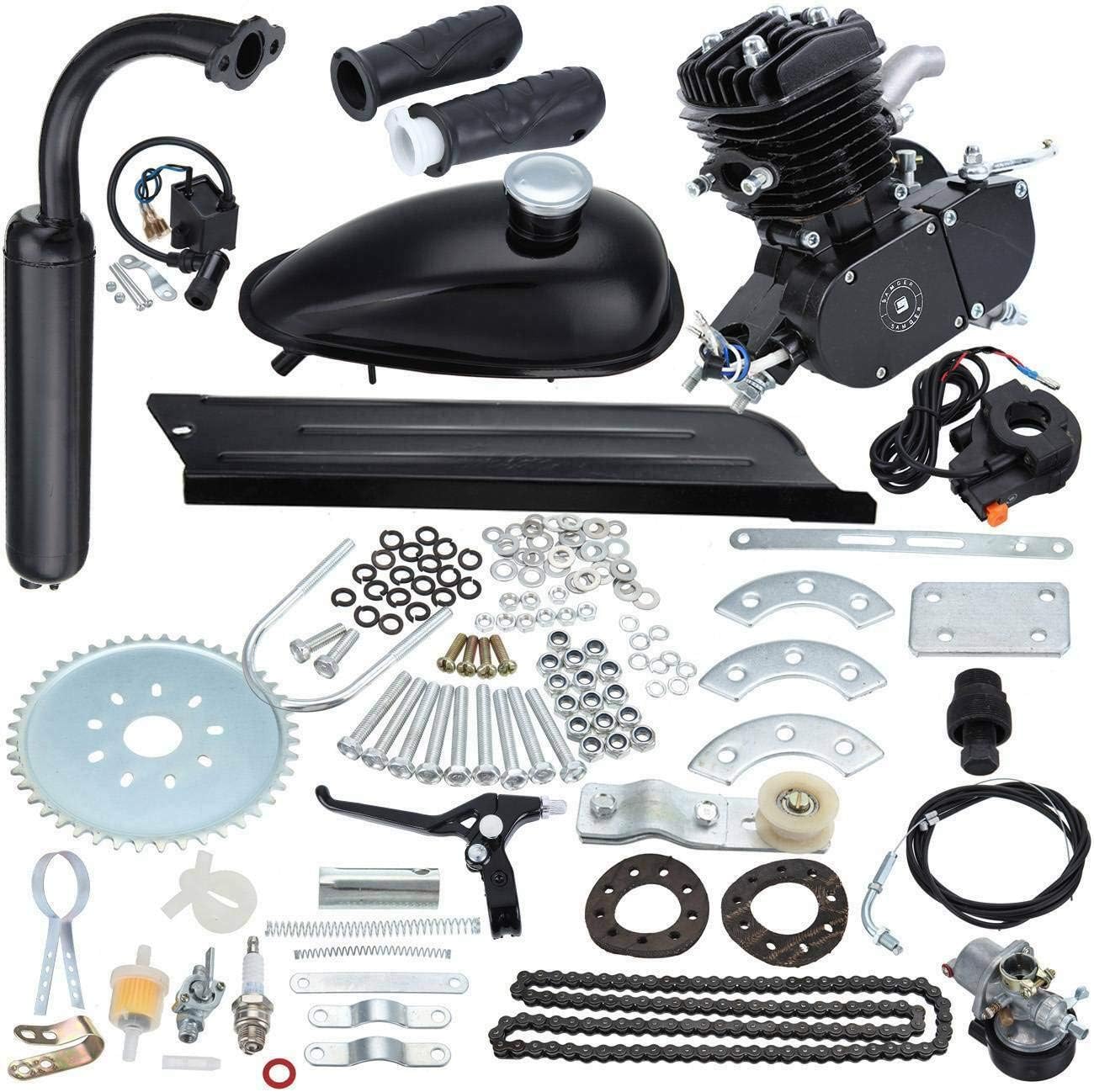

Package Includes

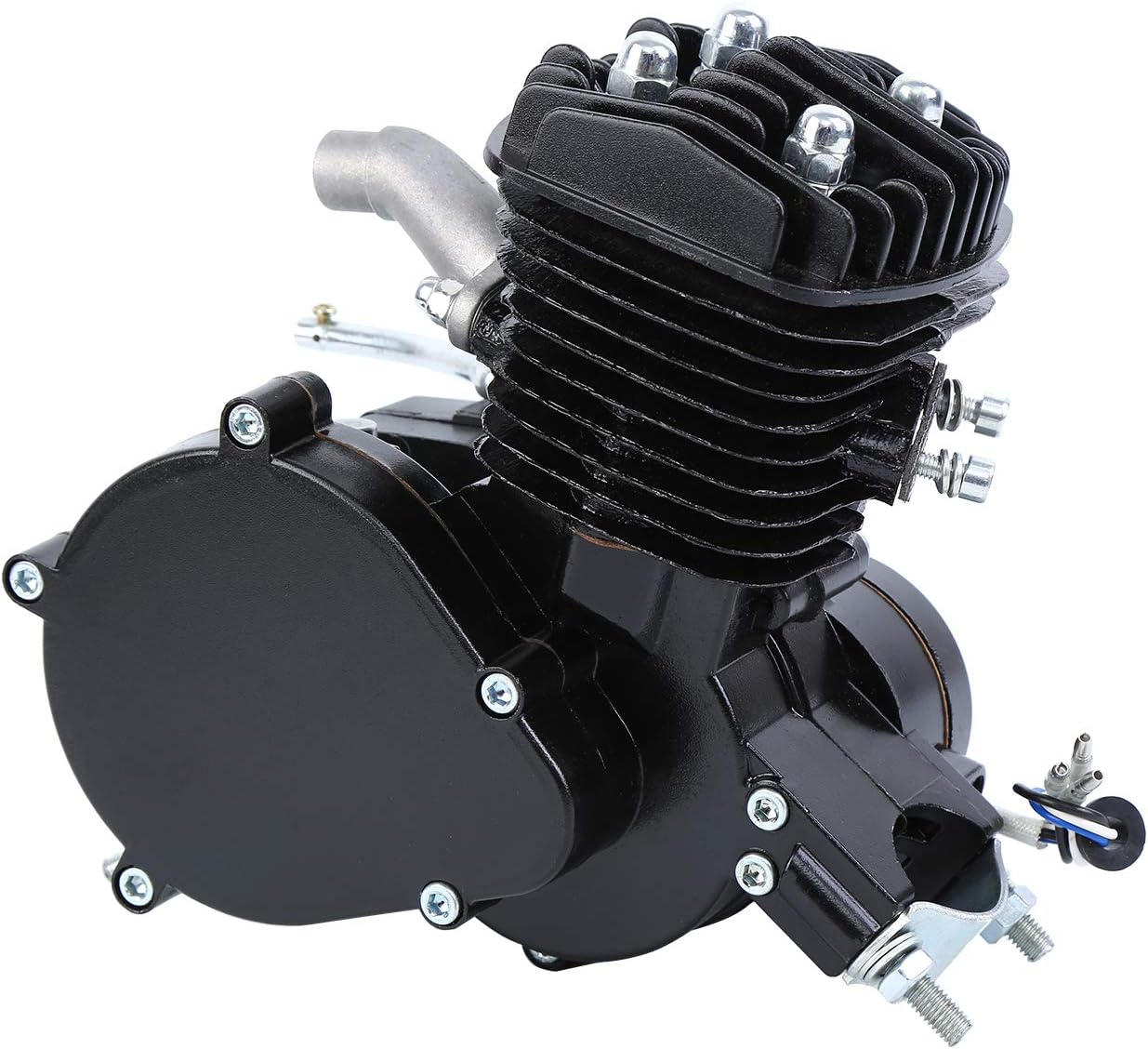

- 1x Black 50cc 2-stroke engine
- 1x Sprocket clamp assembly with hardware
- 1x Exhaust muffler
- 1x Push button clutch
- 1x Heavy duty chain
- 1x Bearing chain tensioner/idler

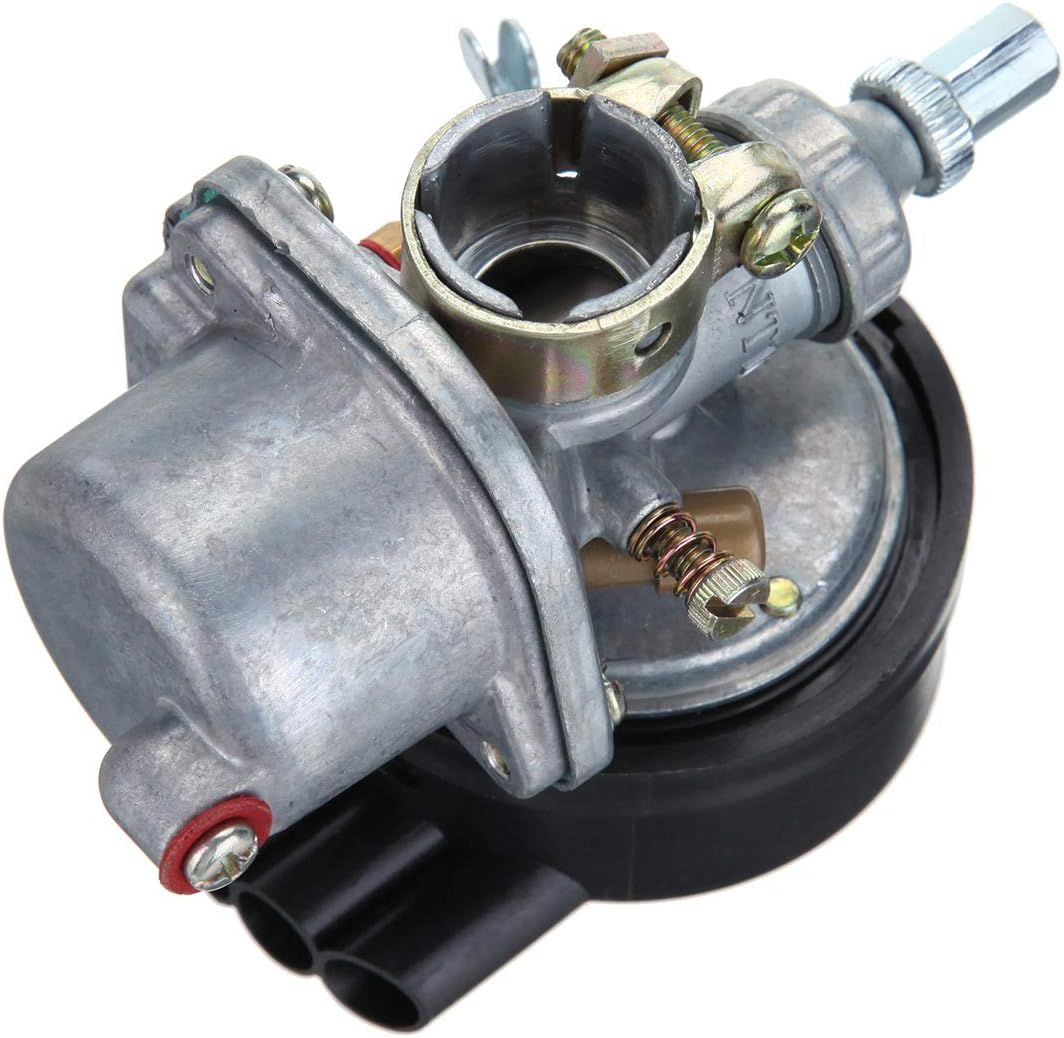

- 1x Carburetor
- 1x CD ignition coil
- 1x Kill switch (on throttle)
- 1x Chain guard
- 1x Spark plug

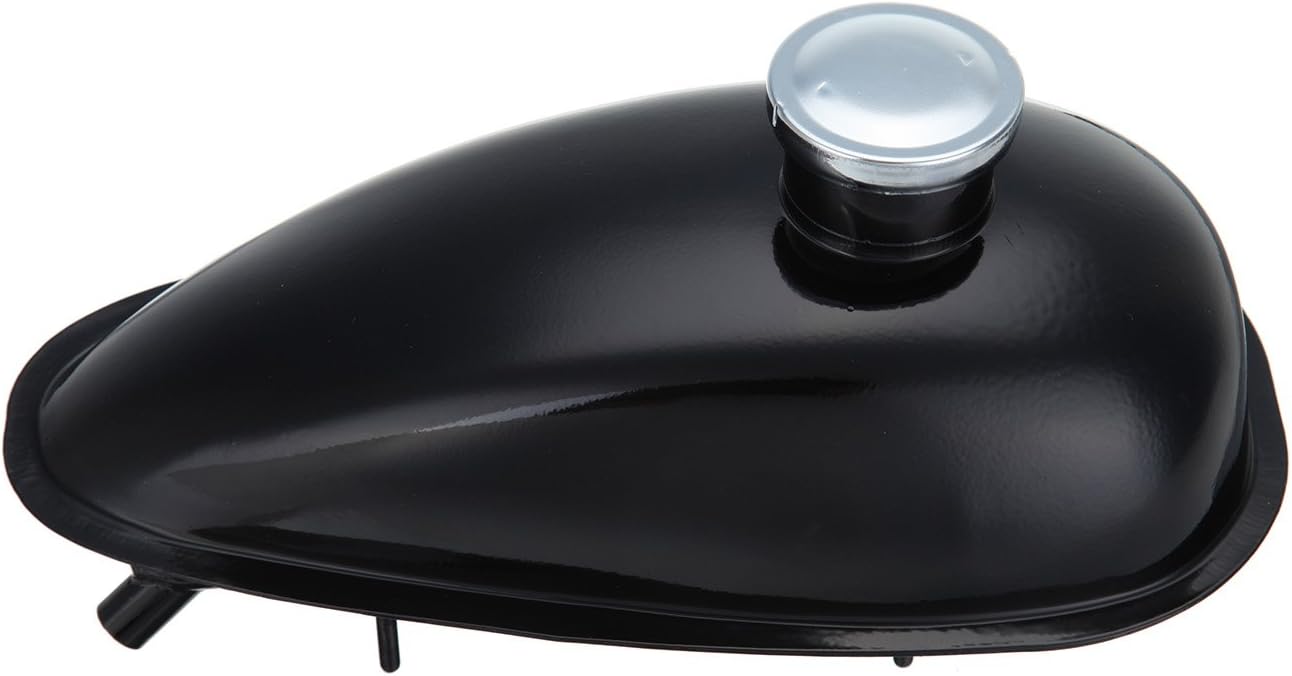

- 1x Black gas tank with mounting brackets
- 1x Exhaust pipe clamp
- 1x Plug removal tool
- 1x Manual
Note: Ensure proper gasoline/oil mix for optimal performance and longevity. Refer to the manual for detailed instructions.
